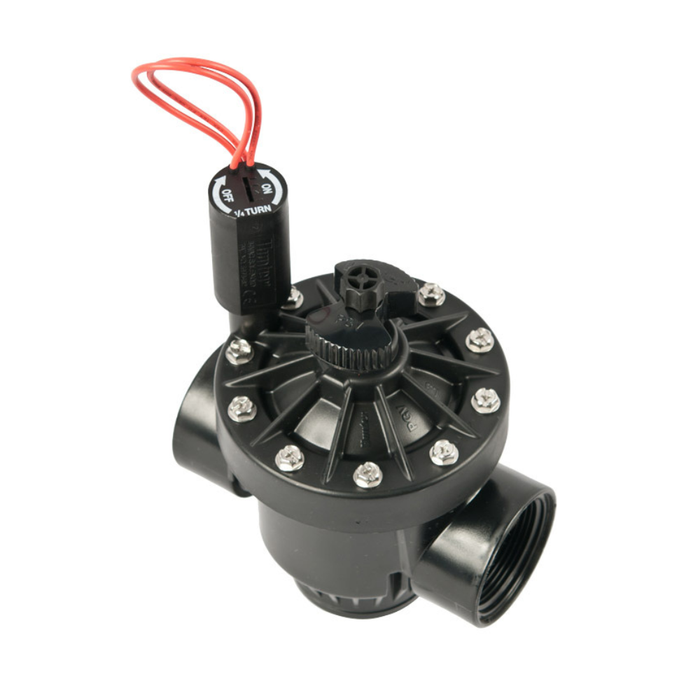

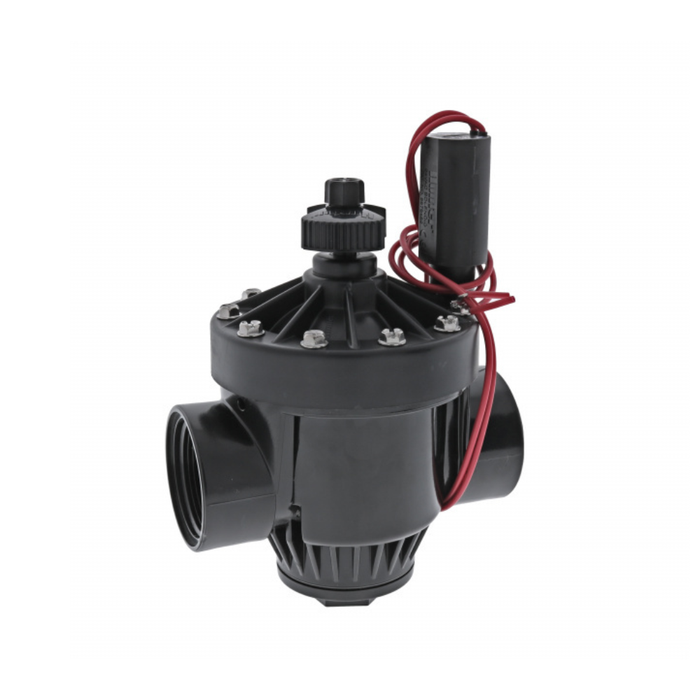

Hunter - PGV-151 - 1-1/2'' Globe/Angle Valve w/ Flow Control (FPT)

Hunter PGV-151 - 1-1/2'' Globe/Angle Valve with Flow Control, Female NPT Inlet & Outlet. Professional-Grade Heavy-Duty Valves for Larger Landscape Applications

This hard-working, heavy-duty valve offers the best features of Hunter's top-of-the-line valves. Built with enough durability to handle the rigors of most residential and light commercial sites. For larger landscape applications, the PGV comes in 1-1/2" globe/angle models (with flow control). All models feature durable high-grade construction and a rugged diaphragm with support to prevent stress failure.

Features

• Size: 1-1/2" Female Pipe Thread
• Each valve available with globe or angle configuration for convenient placement
• Flow control maximizes efficiency and prolongs the life of the system
• External and internal manual bleed allows quick and easy at the valve activation
• A double-beaded diaphragm seal design for superior leak-free performance
• Captive bonnet bolts provide hassle-free valve maintenance and eliminate the possibility of lost parts during disassembly
• Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
• Low flow capability allows the use of Hunters micro-irrigation products
• Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
• Optional: DC latching solenoids enable Hunters battery-powered controllers (458200 Solenoid Sold Separately)
• All Hunter valves are 100% water tested to ensure reliable operation once installed

Operating Specifications

• Flow rate: 20 to 120 GPM
• Recommended pressure range: 20 to 150 PSI
• Temperature rating: 150° F
• Warranty period: 2 years

Solenoid Specifications

• 24 VAC solenoid
• 350 mA inrush, 190 mA holding, 60 HZ
• 370 mA inrush, 210 mA holding, 50 HZ

Downloads

• PGV Valve Brochure
• PGV Spec Sheet
• Hunter Valve Support
